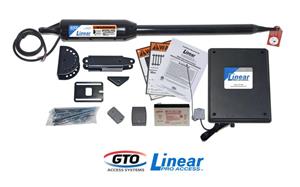

GTO/Linear Pro SW4000XLS Single Swing Gate Opener (PROSW4000XLS)

• Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
• Weight and length: Up to 20 ft. in length or 1,000 lbs.
• Max degree of opening: 110 degrees
• Gate Post or Column size (pull to open): Max 24" x 24" post or gate mounted 12" from the rear face of a column.
• Push to Open: Yes (longer bracket may be needed in some situations* bracket can be purchased separately) - setback above does not apply to push to open.
• Solar Compatible: Yes (purchased separately).
• Power: Battery and Low Voltage Trickle Charge (both included)
• Power Wire Specification: 16 gauge wire (purchased separately) with 1,000 foot max length from transformer to control board.
• Warranty: 2 year manufacturer control board, 2 year component manufacturer warranty.

GTO/ACCESS SYSTEMS 4000XLS Gate Capacity Chart

GTO/PRO SW4000XLS Single Swing Gate Opener

An exciting time in the world of gate openers. GTO/PRO has released a new PRO SW4000 series of gate openers, the PRO SW4000XLS. The XLS series has a number of improvements over its predecessor including a 10% increase in the operating speed. The XLS series also contains a new rev-counter board with reed switch technology, which helps the gate opener determine its position. In addition, the XLS series includes an improved front mount and scraper seal design. Unfortunately, the new XLS series control boards and arms are not cross compatible with the XL series. So, if you purchase an XLS arm for your XL control board, they will not work together.

The GTO/PRO SW4000XLS Single Gate Opener can be used in most heavy residential or light commercial applications including automating gates made of farm tubing, steel, aluminum, wood, and chain link, along with many other gate types. This opener can be set on the left or right and is used in the standard pull-to-open operation. By using the same bracket accessory the PRO SW4000XLS can be used to push the gate open away from the property with the arms still mounted on the inside.

The PRO SW4000XLS Single Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run 16-gauge low voltage to a household outlet within 1000' of the operator or use a solar panel. The PRO SW4000XLS single Opener is made with longevity and compatibility in mind. It can be used with GTO Inc.'s complete line of accessories including keypads, transmitters, exit wands, gate locks, solar panels, and more.

*In Some Situations: The bracket that comes with the PRO 4000XLS is 10" long. Depending on where you can position the brackets that are attaching the 10" bracket to the post or column and the position of the hinge a longer bracket may be needed to give the opener arm 2" of clearance in the open position. Rear face of a column: Most driveway gates are mounted on the inside face of the column, the side facing the driveway, and then you mount your gate opener on the rear face of the column, the side facing the inside of the property. The important distance in terms of mounting your gate opener is the distance from the hinge of the gate to the back face of the column.

• Soft Start/Soft Stop -Soft start/soft stop is a feature in which the control board, during the set up process, learns where your opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gates destination point. This feature can also be turned off.

• Closing Timer -Set your gate to close between 0 and 100 seconds after reaching the full open position or turn this option off to leave it open until an entry device activates closing motion.

• Learn Mode -With the GTO/PRO 4000XLS the learning process, the end points are determined by the user via remote. A simple press of the transmitter tells the opener where to stop and when the opener is set to the desired stop points, save the settings on the board.

• Oversized Control Box Housing - The GTO/PRO 4000XLS oversized control box can house (2) 7 amp/hour batteries and is rated for outdoor use (only one is included with purchase). It is resistant to high winds, sand, dust, rain, snow, sleet, and freezing water, protecting your valuable control board from the elements and your battery from corrosion.

• Order specific customized accessory wiring instructions
• 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
• Free 24/7/365 Installation Support
• Free 7 day/week Technical Support
• Largest Number of Certified Techs in America
• Free assistance to find the right gate opener for your gate
• Free systems design assistance to match the right accessories to fit your needs.
• Extremely competitive pricing
• Free shipping on all accessories purchased with a gate opener
• We stock replacement parts
• Many brands of many types of accessories, enough to handle just about any operational situation you can imagine

"The PRO SW4000XLS has a longer arm than the GTO/Pro SW3000XLS. Featuring true soft start and stop, the PRO SW4000XLS helps to preserve the life of the gate and opener arm itself. When your gate approaches its endpoints the opener will slow the momentum of the gate to meet with the positive stops.

Another advantage of the PRO SW4000XLS is the oversized control box. GTO listened attentively to the wishes of their installers and answered with their new design. Installers many times wish to use an extra battery for larger number of cycles, extra power storage for solar, or battery assistance in extreme cold weather. The new control box design has an extra storage space built in for a second battery.

With GTO products you get factory support during business hours. When purchased through DIY Gate Openers however, you get installation or technical support 9am - 9pm, 7 days a week. DIY Gate Openers has years of experience with GTO Inc. openers as well as many other brands and accessories and is readily available 7 days a week.

DIY Gate Openers is dedicated to getting the right gate opener for your gate. As more gate openers are being made economically feasible and easy to maintain, the selection is going to grow ever wider. That's where DIY Gate Openers comes in. We have extensive amounts of educational material on our website to help you become an informed consumer. We also have our factory-trained representatives standing by to answer all your gate and gate opener questions. The combination of our customers passion for home improvement and DIY Gate Openers wealth of knowledge is a perfect match and cannot be duplicated."
