Click on the image to enlarge!

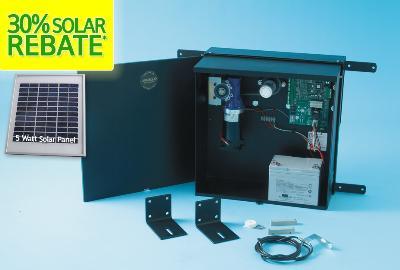

Apollo 7000UL Single Slide Opener Featuring the 800 Series UL Approved Board - w/ 5 Watt Solar Panel

Sale Price: $1,217.75
Please Select an Option:


Bookmark and Share

Solar Gate Opener

Going solar has never been easier! Apollo, the Gate Opener name you know and trust is now available with a solar panel. Effectively automate your gate, reduce your energy dependence, and you may even save money by learning about the potential tax rebate advantages. Please note: the solar panel you receive may differ in appearance from the one pictured above.

Quick Steps to Going Solar:

  1. Check out the solar zone maps and find your state.
  2. Review the chart to match the wattage and desired (estimated) cycles per day.
  3. Select a solar panel wattage from the drop down menu above.
  4. Print the Apollo Certificate & retain for tax purposes.
  5. Add to Cart.

Solar Panel Zone Map

The colors on this map designate solar zones during the periods of the year when the least amount of sun light is available. The recommended cycles do not factor the power draw of accessories. Cycles are considered one full opening and closing movement of a maximum size/weight gate for the corresponding opener. Cycles are also figured to be proportionally distributed over a 12 to 14 hour period; not consecutive.


    Zone 3 Zone 2 Zone 1
Apollo 1500/1550
20W 48 44 40
30W 70 65 60
40W (30W & 10W in Parellel) 92 86 80


The Apollo 7000UL Single Slide Opener is a practical system that allows for easy installation (professional installer recommended). Because this opener uses a low voltage charge, it is unnecessary to run 110AC to the gate. Also, the low voltage design allows the customer to use a household outlet within 1,000 ft. of the operator by running a 14-guage low voltage wire between the two. For customers who are eco-friendly, or who wish to save on electrical bills, it is also possible to use a solar panel to charge the battery with the same wire. The Apollo 7000UL's large-sized NEMA 3R control box can hold a larger battery than many other units. This means the unit has the capacity for extra power storage with a deep cycle battery (not included), providing enough energy for up to 300 cycles (1 foot per second), or approximately 30 days of use before the necessary recharge. It is also more durable, as it protects the unit from the elements.

In addition to the Apollo 7000UL's low voltage convenience and eco-friendly options, the unit is designed for convenience and versatility. Because it can be mounted on nearly any side of the gate, as well as operate on either pull or push to open functions, the unit can be installed to fit the design of the customer's property. The manufacturer also includes 25 feet of #40 roller chain, and the 800 series control board makes it easier to control the various functions of the gate. Furthermore, the 800 series control board contains 12 volt output terminals for various accessories that may require power.


The Apollo 7000UL Single Slide Opener is a practical system that is easy to install, especially with the DIYGateOpeners.com additions for a bolt on application to any size post. This is the agricultural version of the Apollo line.

  • Gate Length and Weight - Max opening of 20' or 600 lbs
  • Gate Materials - Wood, Steel, Aluminum, Chain Link, and more
  • Power - Battery (not included) and Low Voltage Trickle Charge (included; 12V DC system)
  • Movement Method - Chain
  • Solar Compatible - Yes
  • 1 1/2 Amp Hour Battery Charger
  • 2 Transmitters
  • Receiver
  • Installation ready
  • 25' #40 Roller Chain
  • NEMA 3R box
  • 2 Year Limited Warranty
  • Safety Standard UL 325 approved

In addition to providing innovative and renowned products, DIYGateOpeners.com has a unique website that allows customers to truly visualize their security aspirations. On the website, customers can utilize the virtual builder to create a representation of their home security gate system, complete with varying gate materials and designs. The customization doesn't stop there, however. DIYGateOpeners.com ensures that all points of gate opener installation are taken into account by offering such considerations as distance to power supply, distance from house to gate, the number of homes secured by the gate, etc. By giving customers the opportunity to take these points into consideration, DIYGateOpeners.com ensures that the realization of the design is not only effective, but also possible; there will be no trial and error with fitting the proper gate opener to a customer's security needs. Furthermore, our Discount It Yourself packages allow customers to choose exactly what they need, not what someone else thinks they need. Every gate opener design is truly customized to the consumer's specifications.

The website design is all about putting the customer's needs first, and DIYGateOpeners.com does not stop there. The difference of any gate opener or accessory that a customer finds on an authorized dealer's website for cheaper will be refunded, plus 10% of that difference. Similarly, if the 9am-9pm EST Tech Support Hours do not fit a customer's schedule, the customer need only send in an e-mail detailing expected installation time, and DIYGateOpeners.com will respond with a number for the customer to reach a representative during the scheduled installation. How many other companies will alter their business hours for a customer? At DIYGateOpeners.com, the customer really does come first.
