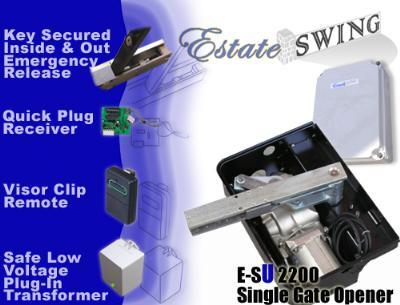

Estate Swing E-SU 2200 Underground Single Swing Gate Opener

The Estate Swing E-SU 2200 Underground Single Swing Opener meets the highest standards in aesthetics and safety. Because this model is a completely underground unit, only the stainless steel cover is visible from above ground. This means that residential landscaping will not be marred by an unattractive gate opener system, ensuring the landscaping aesthetics retain their visual appeal. In addition to Estate Swing's attention to visual attractiveness, the manufacturer adheres to the highest safest standards. To begin with, the manufacturer meets or exceeds ISO 9000 regulations, which require testing on 100% of all products being produced in a single factory, and all the parts of Estate Swing systems are made in one factory. Likewise, the Estate Swing E-SU 2200 is certified for and exceeds UL 325 standards for anti-crushing safety. The diligent observation of safety standards assures that this model not only meets safety requirements but also offers a high-quality product.

The Estate Swing E-SU 2200 also offers ease of operation. The low voltage system eliminates the need to run 110 AC to the gate; a low voltage wire that plugs into a household outlet within 200' of the operator is sufficient. Unique to this model, however, is its capability to function as a constant duty opener. Also convenient is the user-driven updateable manual for continuous improvement of installation ease, maintenance, and troubleshooting updates. Even though this model is easy and convenient to operate, it is recommended that the opener be installed by a professional only.

THE BASICS:

The Estate Swing E-SU 2200 Underground Single Swing Opener is a powerful unit designed for constant duty. This opener uses a well-recognized control board and the under-gate mounting makes it a virtually invisible system.

• Gate Length and Weight - Up to 12' in length and 1100 lbs
• Gate Materials - Wood, Steel, Aluminum, Chain Link, and more
• Gate Post or Column Size (pull to open design) - Unlimited; 2 3/4" clearance for face of post (the side closest to the driveway) to center of hinge and 2 1/2" clearance from bottom of the gate to the ground
• Push to Open - Yes; same requirements as pull to open
• Power - Low voltage transformer (included) and backup batteries (optional; not included)
• Solar Compatible - No

• One Touch EZ-Programming - The control board learns the open and closing limits automatically, so there is no need for time-consuming guesstimates and manual adjustments.
• Soft Start/Soft Stop - This feature eases the wear and tear on the gate. During a normal cycle, the opener automatically slows the motion of the gate near the stop points so the gate closes smoothly and with minimal impact.
• Control Board, Easy Read Diagnostics - FAAC has included a LED light diagnostic on the control board for easy diagnostics of problems or missing connections. This allows efficient repair and swift continuation of normal gate operation.
• Adjustable Performance Features - Adjust such features as Pause times, Opening/Closing Delays, Static Force, and much more. This means the unit's functions are customizable to the customer's lifestyle.
• Preset Gate Function Logics - Preset multiple features at once so that they can be changed later at the touch of a single button.
• Quick Plug Radio Receiver - The remote receiver is easy to use and the design means there are no wires to run; just set the dip switch combination and plug it into the board.
• No Required Setback - Because this model is mounted beneath the gate, it is possible to automate gates with limited space for mounting a linear or articulating arm.
• 12 Volt Output Terminals - For convenient addition of accessories requiring power like locks, sensors, and more.
• 180 Degree Opening Capability - No other gate opener can swing open a full 180 degrees. This is an optional capability that requires additional brackets; standard brackets are for up to 110 degrees. Internal positive stop brackets are also available. Most units use physical stop points, but the internal positive stop brackets are a function of the gears inside the transmission so it is not necessary to mount anything on the gate or ground.
• Quick, Safe, and Secure Manual Release - Every unit comes with a manual release key that can be used should the power fail and the backup battery is not charged. This ensures that the gate can be opened without damaging or disconnecting any components.
• Highest Level of Safety - In addition to meeting or exceeding many safety standards, this model's safety devices function on a normally closed circuit. This means that if a safety device does not activate for any reason, the opener will not operate, keeping loved ones and assets safe. Most other openers function on a normally open circuit, which means the consumer does not know the safety device is not working properly until it is too late.
• Advanced Gear System - The advanced gear system is essential to the durability and power of the gate opener. The design of this motor enhances reliability and control, and cuts down on overall wear and tear on the motor.
• All Weather Compatible - The arm is able to withstand the extremes of weather and outdoor use, while the motor and gears are protected underground.
