Estate Swing E-SU 2202 Underground Dual Swing Gate Opener
Click on the image to enlarge!

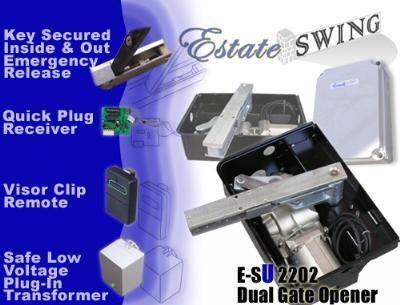

Estate Swing E-SU 2202 Underground Dual Swing Gate Opener

Sale Price: $1,989.00

Quantity:



Bookmark and Share


PRODUCT DESCRIPTION:

The Estate Swing E-SU 2202 Underground Dual Swing Opener meets the highest standards in aesthetics and safety. Because this model is a completely underground unit, only the stainless steel cover is visible from above ground. This means that residential landscaping will not be marred by an unattractive gate opener system, ensuring the landscaping aesthetics retain their visual appeal. In addition to Estate Swing's attention to visual attractiveness, the manufacturer adheres to the highest safest standards. To begin with, the manufacturer meets or exceeds ISO 9000 regulations, which require testing on 100% of all products being produced in a single factory, and all the parts of Estate Swing systems are made in one factory. Likewise, the Estate Swing E-SU 2202 is certified for and exceeds UL 325 standards for anti-crushing safety. The diligent observation of safety standards assures that this model not only meets safety requirements but also offers a high-quality product.

The Estate Swing E-SU 2202 also offers ease of operation. The low voltage system eliminates the need to run 110 AC to the gate; a low voltage wire that plugs into a household outlet within 200' of the operator is sufficient. Unique to this model, however, is its capability to function as a constant duty opener. Also convenient is the user-driven updateable manual for continuous improvement of installation ease, maintenance, and troubleshooting updates. Even though this model is easy and convenient to operate, it is recommended that the opener be installed by a professional only.

THE BASICS:

The Estate Swing E-SU 2202 Underground Single Swing Opener is a powerful unit designed for constant duty. This opener uses a well-recognized control board and the under-gate mounting makes it a virtually invisible system.

  • Gate Length and Weight - Up to 12' in length and 1100 lbs
  • Gate Materials - Wood, Steel, Aluminum, Chain Link, and more
  • Gate Post or Column Size (pull to open design) - Unlimited; 2 3/4" clearance for face of post (the side closest to the driveway) to center of hinge and 2 1/2" clearance from bottom of the gate to the ground
  • Push to Open - Yes; same requirements as pull to open
  • Power - Low voltage transformer (included) and backup batteries (optional; not included)
  • Solar Compatible - No
DETAILS:
  • One Touch EZ-Programming - The control board learns the open and closing limits automatically, so there is no need for time-consuming guesstimates and manual adjustments.
  • Soft Start/Soft Stop - This feature eases the wear and tear on the gate. During a normal cycle, the opener automatically slows the motion of the gate near the stop points so the gate closes smoothly and with minimal impact.
  • Control Board, Easy Read Diagnostics - FAAC has included a LED light diagnostic on the control board for easy diagnostics of problems or missing connections. This allows efficient repair and swift continuation of normal gate operation.
  • Adjustable Performance Features - Adjust such features as Pause times, Opening/Closing Delays, Static Force, and much more. This means the unit's functions are customizable to the customer's lifestyle.
  • Preset Gate Function Logics - Preset multiple features at once so that they can be changed later at the touch of a single button.
  • Quick Plug Radio Receiver - The remote receiver is easy to use and the design means there are no wires to run; just set the dip switch combination and plug it into the board.
  • No Required Setback - Because this model is mounted beneath the gate, it is possible to automate gates with limited space for mounting a linear or articulating arm.
  • 12 Volt Output Terminals - For convenient addition of accessories requiring power like locks, sensors, and more.
  • 180 Degree Opening Capability - No other gate opener can swing open a full 180 degrees. This is an optional capability that requires additional brackets; standard brackets are for up to 110 degrees. Internal positive stop brackets are also available. Most units use physical stop points, but the internal positive stop brackets are a function of the gears inside the transmission so it is not necessary to mount anything on the gate or ground.
  • Quick, Safe, and Secure Manual Release - Every unit comes with a manual release key that can be used should the power fail and the backup battery is not charged. This ensures that the gate can be opened without damaging or disconnecting any components.
  • Highest Level of Safety - In addition to meeting or exceeding many safety standards, this model's safety devices function on a normally closed circuit. This means that if a safety device does not activate for any reason, the opener will not operate, keeping loved ones and assets safe. Most other openers function on a normally open circuit, which means the consumer does not know the safety device is not working properly until it is too late.
  • Advanced Gear System - The advanced gear system is essential to the durability and power of the gate opener. The design of this motor enhances reliability and control, and cuts down on overall wear and tear on the motor.
  • All Weather Compatible - The arm is able to withstand the extremes of weather and outdoor use, while the motor and gears are protected underground.
WHY DIYGATEOPENERS.COM?

In addition to providing innovative and renowned products, DIYGateOpeners.com has a unique website that allows customers to truly visualize their security aspirations. On the website, customers can utilize the virtual builder to create a representation of their home security gate system, complete with varying gate materials and designs. The customization doesn't stop there, however. DIYGateOpeners.com ensures that all points of gate opener installation are taken into account by offering such considerations as distance to a power supply, distance from the house to the gate, the number of homes secured by the gate, etc. By giving customers the opportunity to take these points into consideration, DIYGateOpeners.com ensures that the realization of the design is not only effective but also possible; there will be no trial and error with fitting the proper gate opener to a customer's security needs. Furthermore, our Discount It Yourself packages allow customers to choose what fits their needs, not what someone else assumes they need. In this way, every gate opener design is truly customized to the consumer's specifications.

The website design is all about putting the customer's needs first, and DIYGateOpeners.com does not stop there. The difference of any gate opener or accessory that a customer finds on an authorized dealer's website for cheaper will be refunded, plus 10% of that difference. Similarly, if the 9am-9pm EST Tech Support Hours do not fit a customer's schedule, the customer need only send in an e-mail detailing expected installation time, and DIYGateOpeners.com will respond with a number for the customer to reach a representative during the scheduled installation. How many other companies will alter their business hours for a customer? At DIYGateOpeners.com, the customer really does come first.


QB ID: E-SU 2202
