Apollo 1550 Single Gate Opener w/ Solar Panel Featuring the 800 Series UL Approved Board
Click on the image to enlarge!

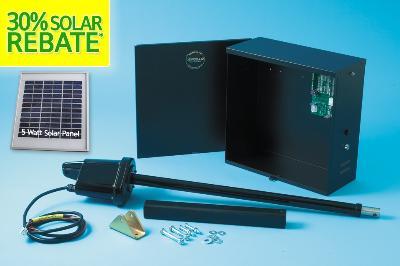

Apollo 1550 Single Gate Opener - w/ 5 Watt Solar Panel

Sale Price: $977.99
Please Select an Option:

Quantity:



Bookmark and Share


Solar Gate Opener

Going solar has never been easier! Apollo, the Gate Opener name you know and trust is now available with a solar panel. Effectively automate your gate, reduce your energy dependence, and you may even save money by learning about the potential tax rebate advantages. Please note: the solar panel you receive may differ in appearance from the one pictured above.

Quick Steps to Going Solar:

  1. Check out the solar zone maps and find your state.
  2. Review the chart to match the wattage and desired (estimated) cycles per day.
  3. Select a solar panel wattage from the drop down menu above.
  4. Print the Apollo Certificate & retain for tax purposes.
  5. Add to Cart.

Solar Panel Zone Map

The colors on this map designate solar zones during the periods of the year when the least amount of sun light is available. The recommended cycles do not factor the power draw of accessories. Cycles are considered one full opening and closing movement of a maximum size/weight gate for the corresponding opener. Cycles are also figured to be proportionally distributed over a 12 to 14 hour period; not consecutive.



    Zone 3 Zone 2 Zone 1
Apollo 1500/1550
5W
14
12
10
10W
26
23
20
20W 48 44 40
30W 70 65 60
40W (30W & 10W in Parellel) 92 86 80

PRODUCT DESCRIPTION:

The Apollo 1550 Single Opener is a practical system that allows for easy installation. Because this opener uses a low voltage charge, it is unnecessary to run 110AC to the gate. Also, the low voltage design allows the customer to use a household outlet within 1,000 ft. of the operator by running a 14-guage low voltage wire between the two. For customers who are eco-friendly, or who wish to save on electrical bills, it is also possible to use a solar panel to charge the battery with the same wire. The Apollo 1550's large-sized NEMA 3R control box can hold a larger battery than many other units. This means the unit has the capacity for extra power storage with a deep cycle battery (not included), providing enough energy for up to 300 cycles (15 seconds in each direction), or approximately 30 days of use before the necessary recharge.

In addition to the Apollo 1550's low voltage convenience and eco-friendly options, the unit is designed for convenience and versatility. This system is American-made in Texas, and was designed with ranch applications in mind. Because it can be mounted on nearly any side of the gate, as well as operate on either pull or push to open functions, the unit can be installed to fit the design of the customer's property.

THE BASICS:

The Apollo 1550 Single Opener is a practical system that is easy to install, especially with the DIYGateOpeners.com additions for a bolt on application to any size post. This is the agricultural version of the Apollo line.

  • Gate Length and Weight - Up to 16' in length and 600 lbs
  • Gate Materials - Wood, Steel, Aluminum, Vinyl, Chain Link, and more
  • Gate Post or Column Size (pull to open design) - Maximum 8"x8" post or gate mounted 6" from the rear face of a column (the gate side facing the property)
  • Push to Open - Yes; setback above does not apply to push to open
  • Power - Battery (not included) and Low Voltage Trickle Charge (included; 12V DC system)
  • Solar Compatible - Yes
DETAILS:
  • Auto Reverse Sensitivity - adjustable
  • Auto Close Delay - adjustable
  • Dual Gate Delay - adjustable
  • Timer to Close
  • Slave Disable
  • 3-Button Station and Station Enable
  • Radio Receivers
  • Keypads
  • Miscellaneous Options
  • Emergency Bypass
  • Free Exit
  • Safety and Shadow Loops
  • Edge
  • Telephone Entry
  • Photoeye
