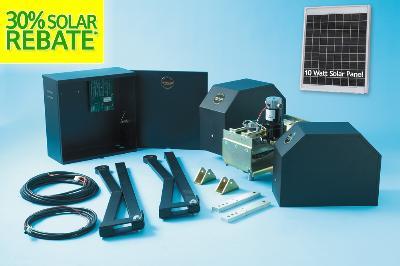

APOLLO 3600ETL Dual Gate Opener w/ DIY Gate Openers DIY Kit & extra remote (3600ETL)
Click on the image to enlarge!

APOLLO 3600ETL Dual Gate Opener w/ DIY Gate Openers DIY Kit & extra remote (3600ETL) - w/ 10 Watt Solar Panel

Sale Price: $3,068.99
Please Select an Option:

Quantity:



Bookmark and Share


Solar Gate Opener

Going solar has never been easier! Apollo, the Gate Opener name you know and trust is now available with a solar panel. Effectively automate your gate, reduce your energy dependence, and you may even save money by learning about the potential tax rebate advantages. Please note: the solar panel you receive may differ in appearance from the one pictured above.

Quick Steps to Going Solar:

  1. Check out the solar zone maps and find your state.
  2. Review the chart to match the wattage and desired (estimated) cycles per day.
  3. Select a solar panel wattage from the drop down menu above.
  4. Print the Apollo Certificate & retain for tax purposes.
  5. Add to Cart.

Solar Panel Zone Map

The colors on this map designate solar zones during the periods of the year when the least amount of sun light is available. The recommended cycles do not factor the power draw of accessories. Cycles are considered one full opening and closing movement of a maximum size/weight gate for the corresponding opener. Cycles are also figured to be proportionally distributed over a 12 to 14 hour period; not consecutive.



    Zone 3 Zone 2 Zone 1
Apollo 1500/1550
5W
14
12
10
10W
26
23
20
20W 48 44 40
30W 70 65 60
40W (30W & 10W in Parellel) 92 86 80

PRODUCT DESCRIPTION:

The Apollo 3600ETL Dual Opener is a practical system that allows for easy installation. With the DIYGateOpeners.com additions, a 5' long, 4'x4' steel post with the mounting plate pre-mounted on top, the customer saves the time and money necessary in finding a welder for installation. Similarly, because this opener uses a low voltage charge, it is unnecessary to run 110AC to the gate. Also, the low voltage design allows the customer to use a household outlet within 1,000 ft. of the operator by running a 14-guage low voltage wire between the two. For customers who are eco-friendly, or who wish to save on electrical bills, it is also possible to use a solar panel to charge the battery with the same wire. The Apollo 3600ETL's large-sized NEMA 3R control box can hold a larger battery than many other units. This means the unit has the capacity for extra power storage with a deep cycle marine battery (not included), providing enough energy for up to 300 cycles (about 15 seconds in each direction), or approximately 30 days before the necessary recharge.

In addition to the Apollo 3600ETL's low voltage convenience and eco-friendly options, the unit is durable and well-designed. The opener uses the sophisticated 800 series control board, and has a new arm design that eliminates major pinch points. Also, since it is a compact unit, it has a low profile to provide for visual appeal and functionality. Finally, this system is ETL approved.

THE BASICS:

The Apollo 3600ETL Dual Opener is a practical system that is easy to install, especially with the DIYGateOpeners.com additions, which allow a no-welding installation. For users who are eco-conscious, this model is also solar compatible.

  • Gate Length and Weight - Up to 20' in length and 1000 lbs per leaf
  • Gate Materials - Wood, Steel, Aluminum, Vinyl, Chain Link, and more
  • Gate Post or Column Size (pull to open design) - Unlimited; operator should be set up so drive shaft is 31.5' from centerline of hinge
  • Power - Battery (not included) and Low Voltage Trickle Charge (included; 12V DC system)
  • Solar Compatible - Yes
DETAILS:
  • Auto Reverse Sensitivity - adjustable and self-adjustable
  • Auto Close Delay - adjustable
  • Dual Gate Delay - adjustable
  • Timer to Close
  • Slave Disable
  • 3-Button Station and Station Enable
  • Adjustable Lock Type
  • Coast Enable
  • Free Exit Option
  • Learn Mode
  • Intelligent Actuator Enable
  • Microprocessor
  • Soft Start and Stop
  • Computer Connection
  • Gatelink Software Option
  • Delay for Siren, etc.
  • Radio Receivers
  • Keypads
  • Miscellaneous Options
  • Emergency Bypass
  • Safety and Shadow Loops
  • Firebox
  • Monitor Lights
  • Lock
  • Siren
  • Strobe
  • Edge
  • Telephone Entry
  • Photoeye
