PRODUCT DESCRIPTION:
The Apollo 3501ETL Single Opener is a practical system that allows for easy installation. With the DIYGateOpeners.com additions, a 5' long, 4'x4' steel post with the mounting plate pre-mounted on top, the customer saves the time and money necessary in finding a welder for installation. Similarly, because this opener uses a low voltage charge, it is unnecessary to run 110AC to the gate. Also, the low voltage design allows the customer to use a household outlet within 1,000 ft. of the operator by running a 14-guage low voltage wire between the two. For customers who are eco-friendly, or who wish to save on electrical bills, it is also possible to use a solar panel to charge the battery with the same wire. The Apollo 3501ETL's large-sized NEMA 3R control box can hold a larger battery than many other units. This means the unit has the capacity for extra power storage with a deep cycle marine battery (not included), providing enough energy for up to 300 cycles, or approximately 30 days before the necessary recharge.
In addition to the Apollo 3501ETL's low voltage convenience and eco-friendly options, the unit is durable and well-designed. The opener uses the sophisticated 800 series control board, and has a new arm design that eliminates major pinch points. Likewise, because of its stable design, this model can handle continuous operation, perfect for commercial or residential use. Also, since it is a compact unit, it has a low profile to provide for visual appeal and functionality. Finally, this system is ETL approved.
|
Solar Gate Opener
Going solar has never been easier! Apollo, the Gate Opener name you know and trust is now available with a solar panel.
Effectively automate your gate, reduce your energy dependence, and you may even save money by learning about the
potential
tax rebate advantages. Please note: the solar panel you receive may differ in appearance from the one pictured above.
Quick Steps to Going Solar:
- Check out the solar zone maps and find your state.
- Review the chart to match the wattage and desired (estimated) cycles per day.
- Select a solar panel wattage from the drop down menu above.
- Print the Apollo Certificate & retain for tax purposes.
- Add to Cart.
|
| Solar Panel Zone Map
The colors on this map designate solar zones during the periods of the year when the least amount of sun light is available. The
recommended cycles do not factor the power draw of accessories. Cycles are considered one full opening and closing movement of a
maximum size/weight gate for the corresponding opener. Cycles are also figured to be proportionally distributed over a 12 to 14 hour
period; not consecutive.
|
| |
|
| |
|
Zone
3 |
Zone
2 |
Zone
1 |
Apollo 1500/1550 |
5W
|
14 |
12 |
10 |
| 10W |
26 |
23 |
20 |
| 20W |
48 |
44 |
40 |
| 30W |
70 |
65 |
60 |
| 40W (30W & 10W in Parellel) |
92 |
86 |
80 |
|
|
THE BASICS:
The Apollo 3501ETL Single Opener is a practical system that is easy to install, especially with the DIYGateOpeners.com additions, which allow a no-welding installation. For users who are eco-conscious, this model is also solar compatible.
- Gate Length and Weight - Up to 20' in length and 1000 lbs
- Gate Materials - Wood, Steel, Aluminum, Vinyl, Chain Link, and more
- Gate Post or Column Size (pull to open design) - Unlimited; operator should be set up so drive shaft is 31.5' from centerline of hinge
- Power - Battery (not included) and Low Voltage Trickle Charge (included; 12V DC system)
- Solar Compatible - Yes
- Operating Temperature: -20F to +150F
- UL 325 photo eye safety device must be attached to the board and used in the operator system
- Warranty:2-year manufacturer control board/ 2-year component manufacturer warranty.
- Power Wire Specification: 16 gauge wire (purchased separately) with 1,000 foot max length from transformer to control board.
- Control Board: Comes standard with the 936 I board, but can be upgraded to the 1050 US board.
DETAILS:
- Auto Reverse Sensitivity - adjustable
- Auto Close Delay - adjustable
- Timer to Close
- Secondary Disable
- 3-Button Station Enable

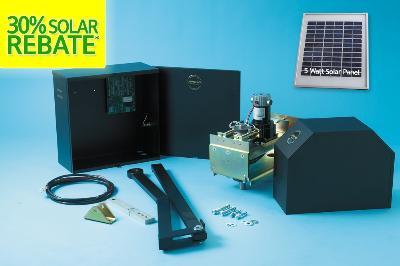

INCLUDED WITH GATE OPENER:
- Weld On Brackets
- Operator arm
- Operator Body and Control Board
- Manual
WHY DIYGATEOPENERS.COM?
In addition to providing innovative and renowned products, DIYGateOpeners.com has a unique website that allows customers to truly visualize their security aspirations. On the website, customers can utilize the virtual builder to create a representation of their home security gate system, complete with varying gate materials and designs. The customization doesn't stop there, however. DIYGateOpeners.com ensures that all points of gate opener installation are taken into account by offering such considerations as distance to power supply, distance from house to gate, the number of homes secured by the gate, etc. By giving customers the opportunity to take these points into consideration, DIYGateOpeners.com ensures that the realization of the design is not only effective, but also possible; there will be no trial and error with fitting the proper gate opener to a customer's security needs. Furthermore, our Discount It Yourself packages allow customers to choose what fits their needs, not what someone else assumes they will need. In this way, every gate opener design is truly customized to the consumer's specifications.
The website design is all about putting the customer's needs first, and DIYGateOpeners.com does not stop there. The difference of any gate opener or accessory that a customer finds on an authorized dealer's website for cheaper will be refunded, plus 10% of that difference. Similarly, if the 9am-9pm EST Tech Support Hours do not fit a customer's schedule, the customer need only send in an e-mail detailing expected installation time, and DIYGateOpeners.com will respond with a number for the customer to reach a representative during the scheduled installation. How many other companies will alter their business hours for a customer? At DIYGateOpeners.com, the customer really does come first.
Manual: 35001k_manual_1000_2_2014
